Features
DN 1/4″ – DN 4″
three-piece split body
soft seated
floating ball
safety spring locking device (optional)
top flange DIN EN ISO 5211
certified acc. to German clean air act VDI 2440
FTF dimensions acc. to DIN 3202-S13
butt weld ends acc. to EN 12627
full bore

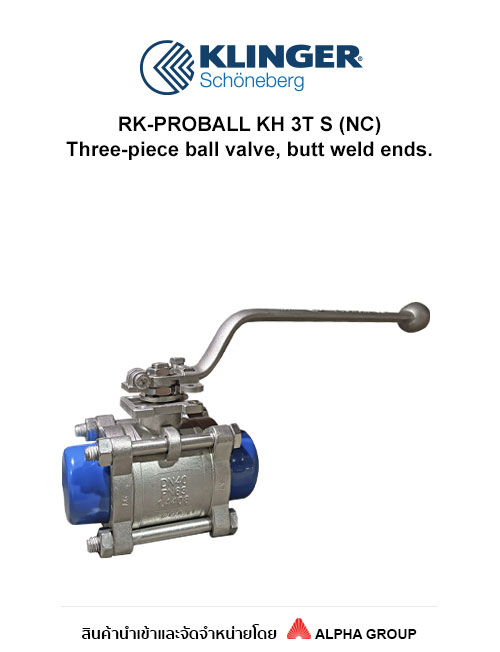

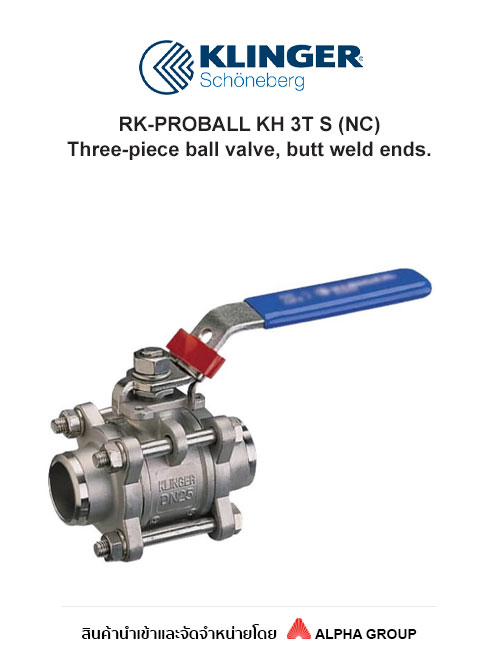

Three-piece ball valve, butt weld ends acc. to EN 12627, face to face dimensions acc. to DIN 3202-S13, full bore, blow-out-proof stem, body material stainless steel (1.4408) or steel (1.0619), antistatic device, free of non ferrous metals, seat KFG, stem packing KF, disc spring loaded adjustable, top flange DIN EN ISO 5211, approved by PED, certified acc. to GERMAN clean air act VDI 2440, lever with safety spring locking device.
| Brands | |
|---|---|
| Type of Valves | Ball Valve |
