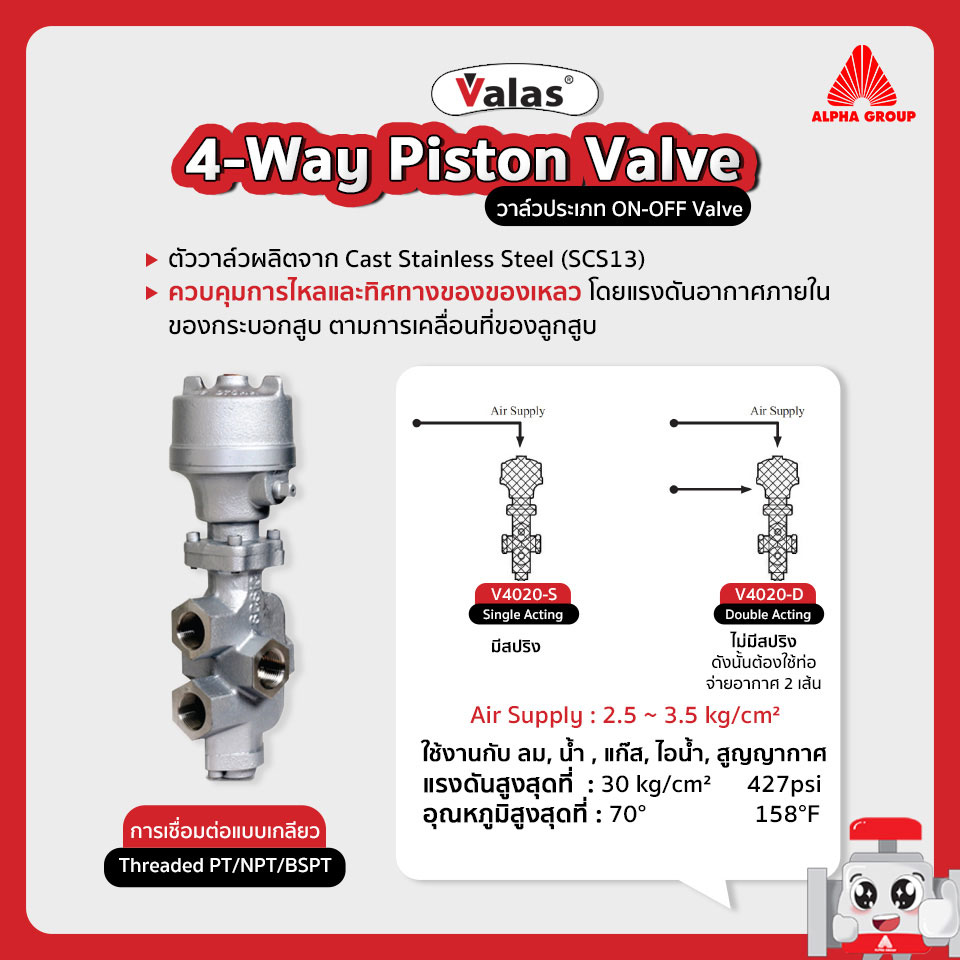

VALAS – 4-Way Piston Valve

Valas

จากประเทศ Korea


4-way Pneumatic actuator piston valve
รุ่น V4020-S Single Acting เป็นแบบมีสปริง
รุ่น V4020-D Double Acting ไม่มีสปริงดังนั้นต้องใช้ท่อจ่ายอากาศ 2 เส้น

เป็นวาล์วประเภท ON-OFF Valve คือ วาล์วเปิด/ปิดที่ควบคุมการไหลและทิศทางของของเหลวโดยแรงดันอากาศภายในของกระบอกสูบ ตามการเคลื่อนที่ของลูกสูบ

ตัววาล์วผลิตจาก Cast Stainless Steel (SCS13)
การเชื่อมต่อแบบเกลียวThreaded PT/NPT/BSPT
ใช้งานกับ ลม, น้ำ , แก๊ส, ไอน้ำ, สูญญากาศ
แรงดันสูงสุดที่ : 30 kg/cm² 427psi
อุณหภูมิสูงสุดที่ : 70°C 158°F

Features

• The valve is connected with water hydraulic cylinder and operates.
• Internal design to increase the life time of o-ring.
• The valve can save other valve use.

Documentations

Description

Piston Valve วาล์วแบบลูกสูบ ยี่ห้อ valas ถูกออกแบบมาเพื่อใช้ในอุตสาหกรรมผลิตยางรถยนต์ ยางมอเตอร์ไซต์ และจักรยาน

Additional information

Brands

Type of Valves

Pneumatic Piston Valve

Product Subtype

4-way Pneumatic actuator piston valve
Type V4020-S / V4020-D
